A Categorical Speaking Indictment
Combining law and math to improve speaking indictments
1. Introduction
According to Wikipedia, “In the United States, a speaking indictment is an indictment that goes beyond the legally required statement of the elements of the charged offense(s) by including a narrative of the alleged underlying conduct in more detail.” The Justice Department’s recent speaking indictment of Donald J. Trump about the 2020 presidential election has no pictures or diagrams … just words describing the events leading to the four counts:
- conspiracy to defraud the United States,
- conspiracy to obstruct an official proceeding,
- obstruction of and attempt to obstruct an official proceeding, and
- conspiracy against rights.
That speaking indictment about the 2020 presidential election could have been organized around
- the timeline of events,
- the alleged co-conspirators,
- the events referenced in each of the indictment’s four counts,
- the major sustained efforts, or
- the different geographical regions involved.
Those alternative organizations of the indictment offer different perspectives that are closely related. Category theory is a field of mathematics that is particularly good at showing how things are related. This essay explores the intersection of law and mathematics to propose that all future speaking indictments should be “categorical speaking indictments” by adding category theory diagrams. Category theory diagrams are more than just information graphics. For example, a category theory diagram in this essay demonstrates that the commonly used but-for legal test to prove cause (e.g., but-for ‘A’, ‘B’ would not have happened) can also be used to prove intent (e.g., but-for the opposition by ‘B’, the progression toward the outcome that was the motivation behind ‘A’ would have continued).
2. Context
Special counsel Jack Smith has been leading the prosecution of two indictments against former president Trump:
- a speaking indictment about classified documents, and
- a speaking indictment about the 2020 presidential election.
In his brief public announcements of those indictments (each approximately 50 pages of double spaced text), Jack Smith said “I encourage everyone to read it in full.” Therefore, it appears the Justice Department has the goal of informing the public about those indictments in addition to the goal of prosecuting the alleged crimes.
Although the goal of informing the public is admirable, the premise of this essay is that a speaking indictment with category theory diagrams would be more effective at informing the public than a text-only speaking indictment. For example, approximately half of the paragraphs in the speaking indictment about the 2020 presidential election are background details, making a compelling narrative but at the cost of losing clarity in the description of the alleged crimes.
Near the end of the speaking indictment about the 2020 presidential election, there is a list of the subset of indictment paragraphs that directly support each of the four counts. That approach reminds me of the published list of income tax forms and instructions that citizens are invited to investigate at their leisure in order to understand what taxes they owe. However, unlike the legal requirement to file income taxes, there is no legal requirement for the public to spend their time investigating a poorly organized indictment. If the Justice Department truly wants to inform the public, it must put more effort into being understood.

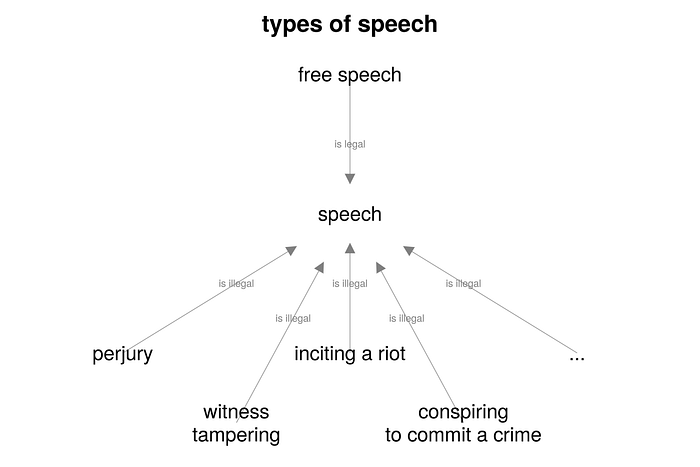

Category theory diagrams help mathematicians understand how things are related by abstracting away unnecessary details and representing relationships between things as arrows (also called morphisms). For example, the following diagram illustrates different types of speech. In this diagram, the only two types of relationships are “is legal” and “is illegal”. By following the arrows, the relationships can be read, for example, free speech “is legal” speech and perjury “is illegal” speech. To properly set the context for the indictment, it might also be helpful to review why certain types of speech are illegal:
- perjury and witness tampering are illegal in order to uphold the integrity of the courts, and
- inciting a riot and conspiring to commit a crime are illegal in order to uphold public safety.
In addition to illustrating the indictment’s paragraph 3 (quoted below), a diagram like this about free speech would also set the context for possible events that could occur during the trial.
3. “The Defendant had a right, like every American, to speak publicly about the election and even to claim, falsely, that there had been outcome-determinative fraud during the election and that he had won. He was also entitled to formally challenge the results of the election through lawful and appropriate means, such as by seeking recounts or audits of the popular vote in states or filing lawsuits challenging ballots and procedures. Indeed, in many cases, the Defendant did pursue these methods of contesting the election results. His efforts to change the outcome in any state through recounts, audits, or legal challenges were uniformly unsuccessful.”
Ideally, the reason for widely informing the public about an indictment is to get a lot of people thinking about solving an underlying problem. The necessarily adversarial trial should take place within a society asking itself “how can we do better?” In a video recorded interview, two time debate world champion Bo Seo describes the needed empathy:
“There are two lessons that we can take away from how debaters listen, and to try and apply it in our own lives: The first is, it is in your best interest to understand the opposition’s argument as they would understand it. And what that means is, it’s not in your best interest to twist their meaning, or to take it at its worst, or to capture only a fraction of it, because they won’t feel as though they had been listened to and heard and ultimately responded to. And unless that moment, that click and that moment of contact happens, it’s not a real disagreement, it’s not a real debate, it’s a kind of a quarrel, or people talking across one another.
The second thing is, it’s also in your best interest to respond to the strongest version of the other side, and sometimes to build up the other side’s case, so that it’s even better than where they have it now. And the reason for that is, you know after you finish speaking, the opposition might have a light bulb [moment] and come up with a better case, or someone on their side might say, “You’ve responded to the weak version of this argument, but here’s something better.” So the further you can take it and the stronger the version of the other side you can respond to, the further ahead you pull, the more you challenge the other side to go even further, and the better the conversation becomes.”
3. Summary Diagram

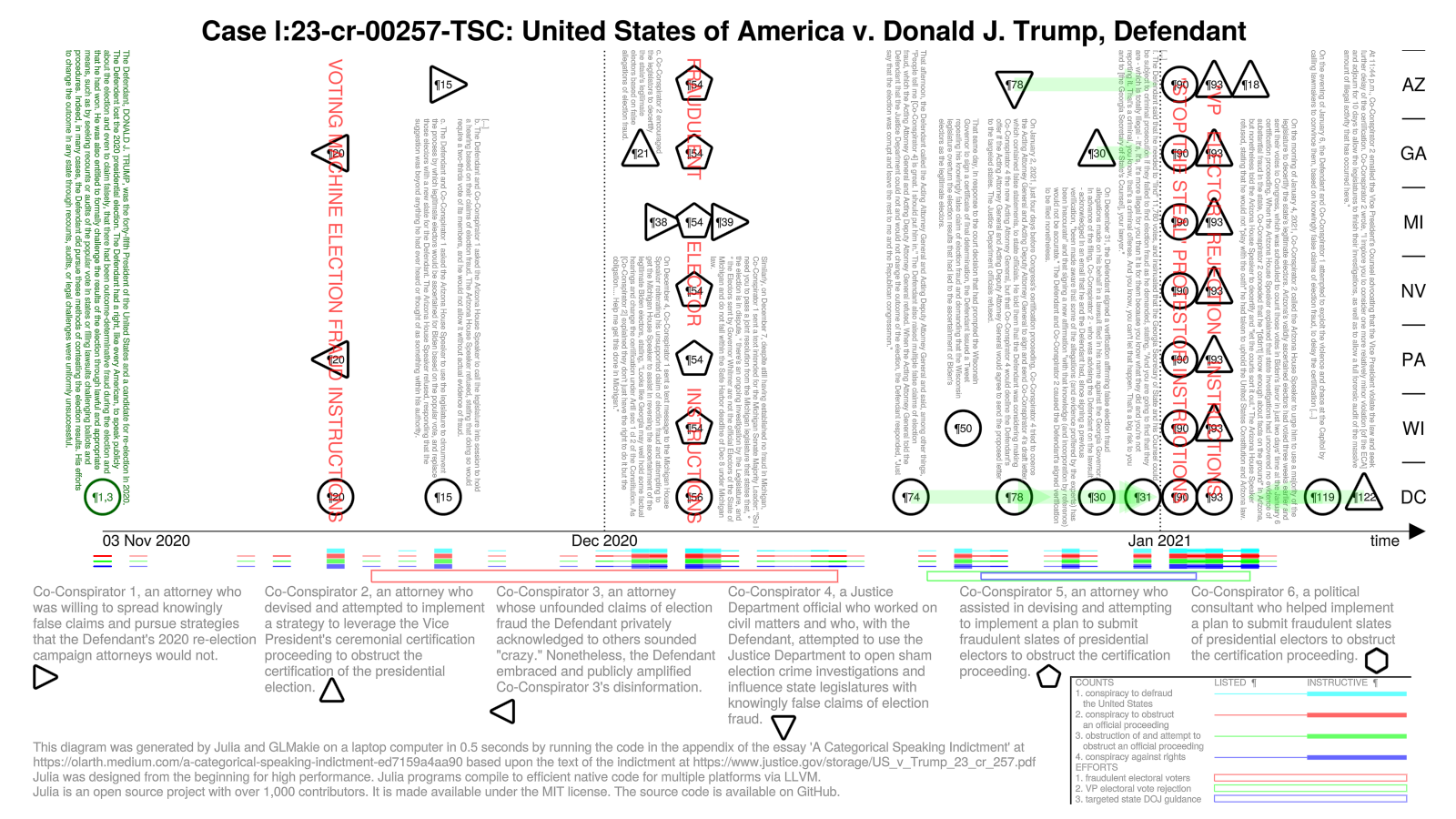

The task that prompted the writing of this essay was the making of a single diagram summary of the two months of events described in the speaking indictment about the 2020 presidential election. In my opinion, some parts of the resulting diagram are easy to understand and other parts still need some work. (The Julia and GLMakie code that generate the diagram is listed in the appendix for anyone interested in improving the diagram.) Unlike most category theory diagrams, the following diagram has no relationship arrows between objects. That is because the non-chronological ordering of the indictment paragraphs would have caused a lot of crisscrossing arrow clutter with little benefit. However later in this essay, portions of this diagram are revisited. There, the relationship arrows are shown.
3.1 timeline of events
The summary diagram has a timeline of the events that are described in the indictment. Because many events occurred around 06 Jan 2021, several events are plotted away from that time (to avoid overlapping) but light green semi-transparent arrows point to the time they occurred.
Note that the indictment’s paragraph numbers (the summary diagram displays the indictment paragraph numbers inside the geometric shapes representing the alleged co-conspirators) are not in chronological order but the summary diagram is.
3.2 alleged co-conspirators
The geometric shape representing each of the six alleged co-conspirators is defined in the bottom portion of the diagram. The geometric shape representing the former president is the circle.
3.3 events referenced in each of the indictment’s four counts
Each of the indictment’s four counts (listed in the diagram’s legend in the lower right corner) reference a list of indictment paragraph numbers. The indictment lists those paragraph numbers. The diagram instead shows (below the timeline axis)
- a thin line on the day of the event described by the paragraph associated with each count,
- a thick line on the day if that event involved direct instructions to people who could overturn the vote.
In an attempt to choose the correct level of abstraction to avoid unnecessary details, the diagram plots symbols only for the events that involve direct instructions to people who could overturn the vote.

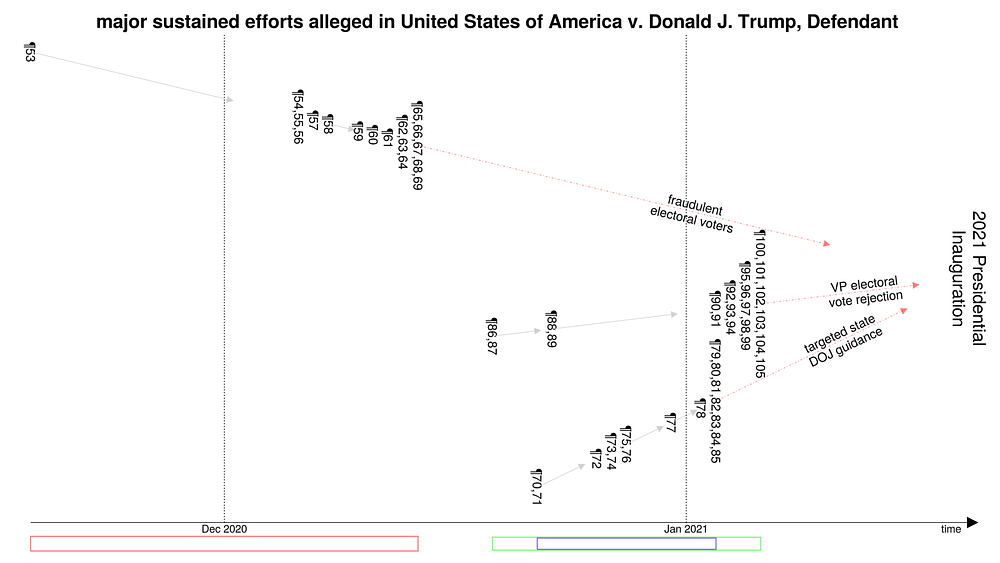

3.4 major sustained efforts
As described in the indictment and listed in the diagram’s legend in the lower right corner, the three major alleged illegal efforts were
- fraudulent electoral voters (represented by red empty rectangle),
- VP electoral vote rejection (represented by green empty rectangle), and
- targeted state Justice Department fraudulent guidance (represented by blue empty rectangle).
3.5 each of the different geographical regions involved
The two letter abbreviations for each of the six targeted states (Arizona, Georgia, Michigan, Nevada, Pennsylvania, Wisconsin) are listed near the diagram’s right edge. Therefore, the diagram’s x-axis is time and the diagram’s y-axis is targeted state (along with Washington D.C. in the bottom row).
4. Mathematics and Law
The approach to proving something in mathematics is very different from the approach to proving something in law. However, there may be some useful analogies between mathematical and legal proofs.
In law, proof is often called the “burden of proof”. According to the Legal Information Institute at Cornell Law School,
Generally, burden of proof describes the standard that a party seeking to prove a fact in court must satisfy to have that fact legally established. There are different standards for different circumstances. For example, in criminal cases, the burden of proving the defendant’s guilt is on the prosecution, and they must establish that fact beyond a reasonable doubt. In civil cases, the plaintiff has the burden of proving their case by a preponderance of the evidence, which means the plaintiff merely needs to show that the fact in dispute is more likely than not. A “preponderance of the evidence” and “beyond a reasonable doubt” are different standards, requiring different amounts of proof.
In criminal cases, an important part of the burden of proof is proving intent. According to the Legal Information Institute at Cornell Law School,
“Intent generally refers to the mental objective behind an action. The concept of intent is often the focal point of Criminal Law and is generally shown by circumstantial evidence such as the acts or knowledge of the defendant.
In Criminal Law, criminal intent, also known as mens rea, is one of two elements that must be proven in order to secure a conviction (the other being the actual act, or actus reus). Some jurisdictions further classify intent into general and specific. It is sometimes difficult to draw a clear distinction between these modes of intent, but the Supreme Court has held that general intent corresponds loosely with knowledge of a crime whereas specific intent refers to the purpose behind committing it.
Drawing this distinction is important because they carry different standards of proof. For general intent, the prosecution need only prove that the defendant intended to do the act in question, whereas proving specific intent would require the prosecution to prove that the defendant intended to bring about a specific consequence through his or her actions, or that he or she perform the action with a wrongful purpose. It is worth noting that due to the confusion surrounding general and specific intent, some jurisdictions have adopted the Model Penal Code’s approach of demonstrating intent by showing the degree of certainty a defendant had that his or her conduct would cause a certain result.”
In mathematics, according to Wikipedia, a proof is
“a deductive argument for a mathematical statement, showing that the stated assumptions logically guarantee the conclusion. The argument may use other previously established statements, such as theorems; but every proof can, in principle, be constructed using only certain basic or original assumptions known as axioms, along with the accepted rules of inference.”
In category theory, things are defined by their relationships (represented as arrows in diagrams) instead of by their properties. And category theory proofs are typically about taking a previously established relationship that applies in one context and showing that it also in some sense applies in another context. In essence, it is analogizing but with the rigor of mathematics.
In the speaking indictment about the 2020 presidential election, three sustained illegal efforts are alleged:
- “The Defendant’s Use of Dishonesty. Fraud, and Deceit to Organize Fraudulent Slates of Electors and Cause Them to Transmit False Certificates to Congress”, as described in indictment paragraphs 53 through 69.
- “The Defendant’s Attempts to Enlist the Vice President to Fraudulently Alter the Election Results at the January 6 Certification Proceeding”, as described in indictment paragraphs 86 through 105.
- “The Defendant’s Attempt to Leverage the Justice Department to Use Deceit to Get State Officials to Replace Legitimate Electors and Electoral Votes with the Defendant’s”, as described in indictment paragraphs 70 through 85.
To save space in this essay’s summary diagram, the names of those three alleged illegal sustained efforts are shortened to “fraudulent electoral voters”, “VP electoral vote rejection”, and “targeted state DOJ guidance”, respectively. In the following category theory diagram, each of the three alleged illegal sustained efforts are shown as straight lines of indictment paragraph numbers.
Those three subsets of indictment paragraphs describing the three sustained efforts are all ordered chronologically, and that is very helpful from a mathematics perspective because ordering things in time is an example of a very commonly used category called totally ordered sets. (It is so common that mathematicians often shorten the name, for convenience, to toset.)
The relationship arrows in the above category theory diagram represent “at or before”. Therefore, following the arrows the diagram can be read, for example, the time of the event described in paragraph 53 is “at or before” the time of the event described in paragraph 54. In the diagram, each column of paragraph numbers describes the events of a single day. In other words, the diagram’s bin size is one day. (Zooming into a much smaller bin size would reveal a line of arrows, each coming from and going to a single paragraph.)
Stringing together relationship arrows results in a path of arrows, called a composition in category theory. The three compositions in the above category theory diagram are all straight lines, and those lines are extended by a dashed red arrow to a single goal: the 2021 presidential inauguration. The indictment alleges that all three sustained efforts were aimed at overturning the former president’s re-election loss. Therefore, those dashed red arrows represent hypothetical relationships: how the sustained efforts would have progressed if not stopped by someone or something.
To make those hypothetical relationships more concrete, it is important to clearly define how each sustained effort ended. That perspective is somewhat different from the perspective of special counsel Jack Smith because the indictment’s final paragraph listed for the sustained efforts is not the indictment paragraph that most clearly defines how the efforts ended.
For example in the diagram’s top sustained effort (the alleged fraudulent electoral voters effort), the indictment’s final paragraph is paragraph 69: “That evening [14 Dec 2020], at 6:26 p.m., the RNC Chairwoman forwarded to the Defendant, through his executive assistant, an email titled, “Electors Recap — Final,” which represented that in “Six Contested States” — Arizona, Georgia, Michigan, Nevada, Pennsylvania, and Wisconsin — the Defendant’s electors had voted in parallel to Biden’s electors. The Defendant’s executive assistant responded, “It’s in front of him!”” Although that paragraph describes the Defendant keeping track of the status of the sustained effort, a clearer description of the sustained effort’s end is in paragraph 101: “On the morning of January 6, an agent of the Defendant contacted a United States Senator to ask him to hand-deliver documents to the Vice President. The agent then facilitated the receipt by the Senator’s staff of the fraudulent certificates signed by the Defendant’s fraudulent electors in Michigan and Wisconsin, which were believed not to have been delivered to the Vice President or Archivist by mail. When one of the Senator’s staffers contacted a staffer for the Vice President by text message to arrange for delivery of what the Senator’s staffer had been told were “[alternate slate[s] of electors for MI and WI because archivist didn’t receive them,” the Vice President’s staffer rejected them.” In other words, but for the VP staffer’s rejection to deliver the fraudulent electoral votes to the VP, the fraudulent electoral voters effort would have progressed further toward overturning the former president’s re-election loss.
Similarly, in the diagram’s middle sustained effort (VP electoral vote rejection), the final paragraph is paragraph 105: “During and after the Defendant’s remarks, thousands of people marched toward the Capitol.” A clearer description of the sustained effort’s end is in paragraph 106: “Shortly before 1:00 p.m. [06 Jan 2021], the Vice President issued a public statement explaining that his role as President of the Senate at the certification proceeding that was about to begin did not include “unilateral authority to determine which electoral votes should be counted and which should not.”” In other words, but for VP Pence’s refusal to reject the electoral votes, the VP electoral vote rejection effort would have progressed further toward overturning the former president’s re-election loss.
Finally, in the diagram’s bottom sustained effort (targeted state DOJ guidance), the final paragraph is paragraph 85: “At the meeting in the Oval Office on the night of January 3, Co-Conspirator 4 suggested that the Justice Department should opine that the Vice President could exceed his lawful authority during the certification proceeding and change the election outcome. When the Assistant Attorney General for the Office of Legal Counsel began to explain why the Justice Department should not do so, the Defendant said, “No one here should be talking to the Vice President. I’m talking to the Vice President,” and ended the discussion.” However, a clearer description of the sustained effort’s end is in paragraph 84: “The Defendant moved immediately from this national security briefing to the meeting that the Acting Attorney General had requested earlier that day [03 Jan 2021], which included Co-Conspirator 4, the Acting Attorney General, the Acting Deputy Attorney General, the Justice Department’s Assistant Attorney General for the Office of Legal Counsel, the White House Counsel, a Deputy White House Counsel, and a Senior Advisor. At the meeting, the Defendant expressed frustration with the Acting Attorney General for failing to do anything to overturn the election results, and the group discussed Co-Conspirator 4’s plans to investigate purported election fraud and to send his proposed letter to state officials — a copy of which was provided to the Defendant during the meeting. The Defendant relented in his plan to replace the Acting Attorney General with Co-Conspirator 4 only when he was told that it would result in mass resignations at the Justice Department and of his own White House Counsel.” In other words, but for the threat of mass resignations at the Justice Department and the White House Council, the targeted state DOJ guidance effort would have progressed further toward overturning the former president’s re-election loss.
The evidence of specific intent increases with each additional sustained effort that would have continued progressing toward a common outcome but for the opposition of someone or something. This proposed use of the but for test is atypical. According to the Legal Information Institute at Cornell Law School, “The but-for test is a test commonly used in both tort law and criminal law to determine actual causation. The test asks, “but for the existence of X, would Y have occurred?”” However, a category theory diagram shows how to generalize the but for test to determine intent in addition to cause:
- causation is based upon relationship arrows coming from the composition’s initial object and going to its terminal object,
- intent is based upon relationship arrows coming from the terminal object and going to its initial object, and
- causation and intent are duals of the other (i.e., the arrows are reversed and the initial and terminal objects are swapped). In mathematics, once a dual relationship is established, it is common for a mathematical proof to be just the phrase “by duality”. In law, the duality of causation and intent has not yet been established but category theory suggests an approach to establishing it.
5. Conclusion
This essay presents several category theory diagrams illustrating the context of the events described in the speaking indictment about the 2020 presidential election. More than just information graphics, the application of category theory demonstrates how the but-for legal test commonly used to prove causation can also be used to prove specific intent. For example, it is legally common to argue that but-for A, B would not have happened (i.e., causality). This essay proposes that category theory diagrams can help illustrate the legal argument that but-for B, the intention behind A would have continued to manifest.
Category theory diagrams can abstract away details added to the speaking indictment that improve the narrative but reduce the clarity of the charge(s). The level to which a category theory diagram helps depends upon choosing the right level of abstraction that shows only the essential details. We are all too easily distracted. By ignoring non-essential details, we at least give ourselves a chance to understand a complex problem.
